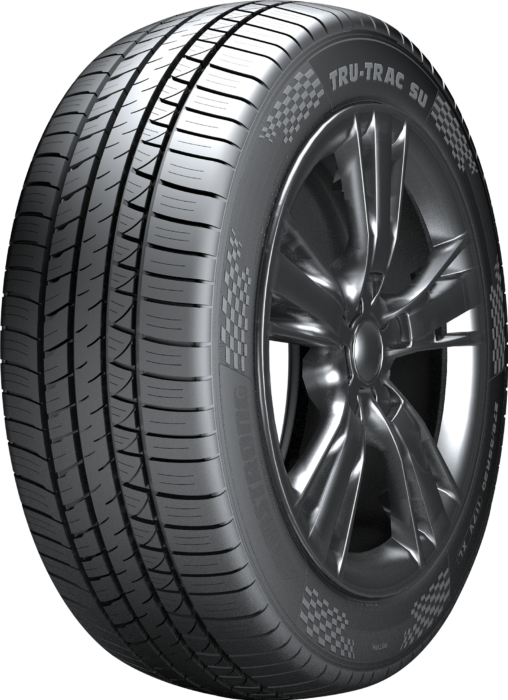

TRU-TRAC SU
True to the Armstrong TRU-TRAC legacy, this SUV tire provides reduced rolling resistance and increased wet grip, plus a shoulder base that inhibits block wriggling and tire deformity. Stiff sidewalls absorb impact and improve ride comfort while a wide footprint enhances overall driving safety and stability.
Category: SUV
6 YEAR LIMITED WARRANTY
Features

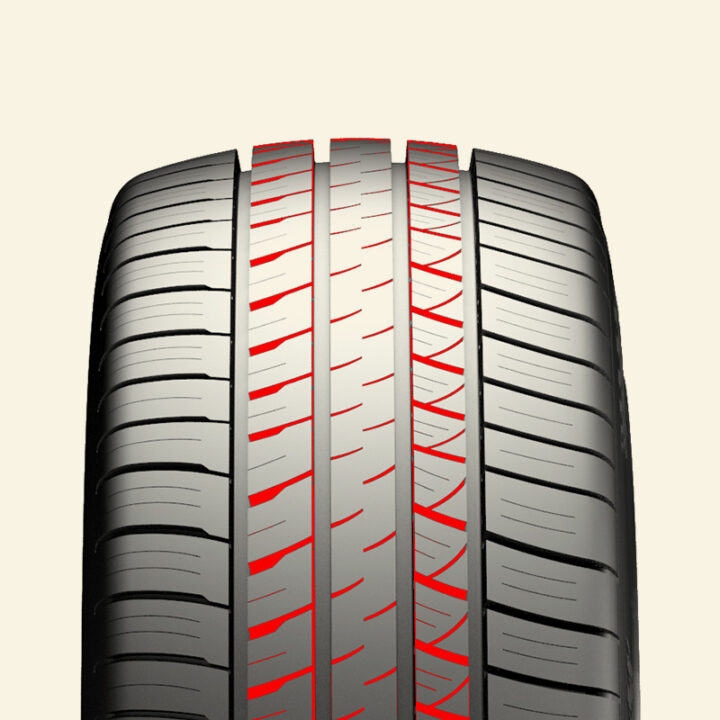

Cross-linked sipes.
Specially engineered cross-linked sipes on the inner ribs reduce rolling resistance and increase grip in wet conditions.

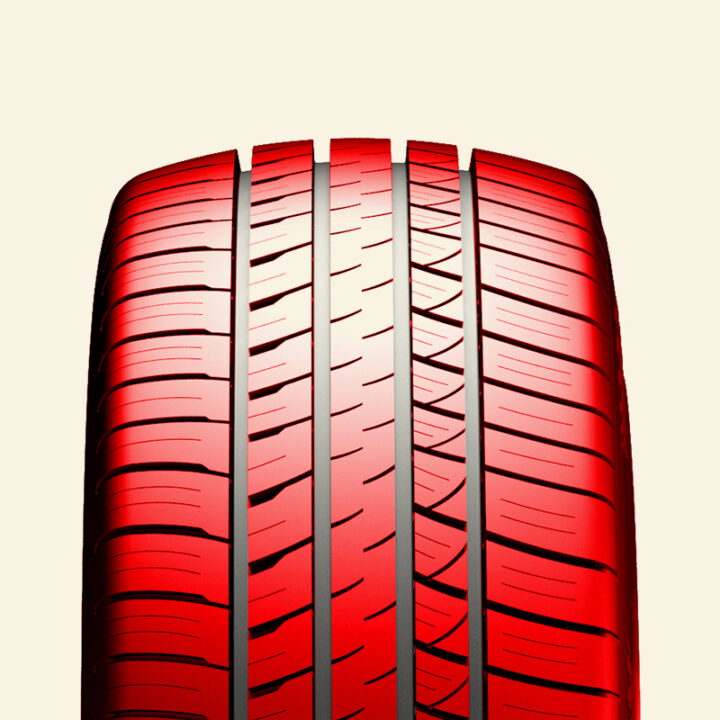

A wide footprint.
A wide “footprint” — the portion of the tire’s tread that makes contact with the road surface — provides overall driving safety and stability.

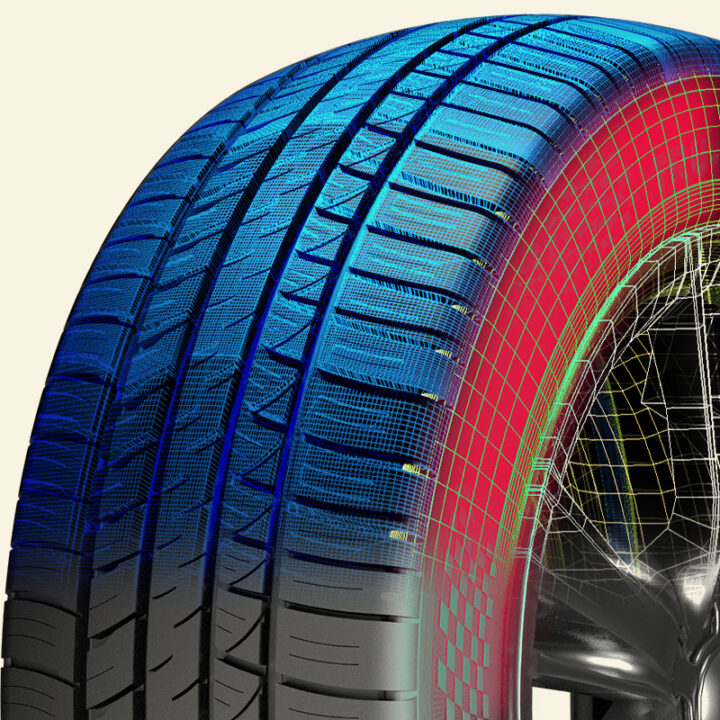

A unique sidewall construction.
A unique sidewall construction absorbs impact on uneven roads to enhance ride comfort.

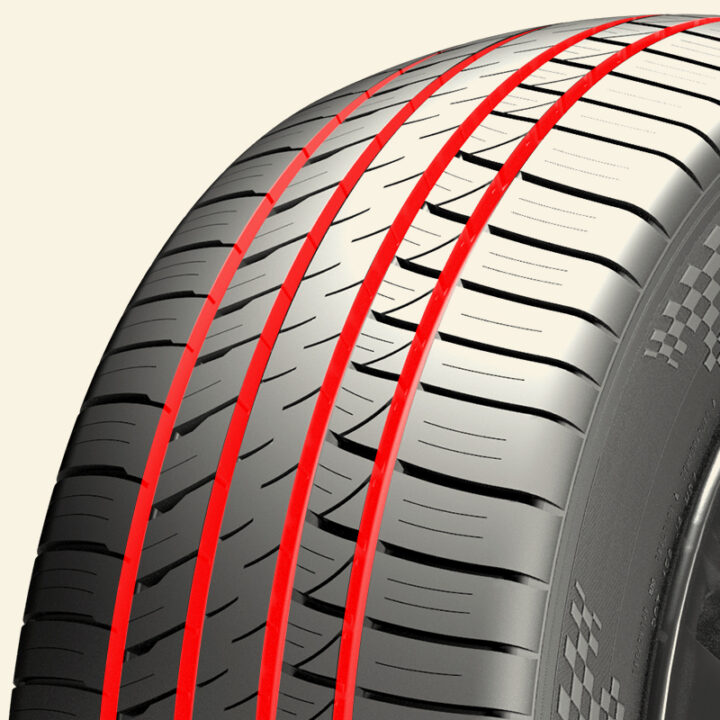

A shoulder bottom base.
A shoulder bottom base and blocks retain continuity by reducing block wriggling and tire deformation.
Specifications
| RIM DIAMETER | SERIES | SIZE | LOAD INDEX / SPEED SYMBOL | MAX LOAD (LBS) | MAX INFLATION (PSI) | RIM WIDTH (IN) | SECTION WIDTH (IN) | OVERALL DIAMETER (IN) | TREAD DEPTH (32NDS) |
|---|---|---|---|---|---|---|---|---|---|
| 24 | 35 | 295/35R24 | 110Y XL | 2337 | 50 | 10.5 | 11.4 | 32.4 | 10 |
| 35 | 305/35R24 | 112W XL | 2469 | 50 | 11 | 12 | 32.5 | 9 | |
| 22 | 35 | 265/35R22 | 102Y XL | 1874 | 50 | 9.5 | 10.9 | 29.4 | 9 |
| 35 | 315/35R22 | 111Y XL | 2403 | 50 | 11 | 12.2 | 30.9 | 9 | |
| 40 | 265/40R22 | 106Y XL | 2094 | 50 | 9.5 | 10.5 | 30.5 | 9 | |
| 40 | 275/40R22 | 108Y XL | 2205 | 50 | 10 | 10.7 | 31 | 9 | |
| 40 | 295/40R22 | 110Y XL | 2337 | 50 | 10 | 11.1 | 31 | 9 | |
| 40 | 305/40R22 | 114W XL | 2601 | 50 | 11 | 12 | 31.6 | 9 | |
| 45 | 275/45R22 | 112W XL | 2469 | 50 | 9 | 10.6 | 31.8 | 9 | |
| 45 | 285/45R22 | 114Y XL | 2600 | 50 | 10 | 11.2 | 32.1 | 9 | |
| 50 | 275/50R22 | 111V | 2403 | 44 | 8.5 | 11 | 32.9 | 9 | |
| 21 | 40 | 285/40R21 | 109Y XL | 2039 | 50 | 10 | 11.2 | 30.3 | 9 |
| 45 | 265/45R21 | 110Y XL | 2337 | 50 | 9 | 10.7 | 30.7 | 9 | |
| 45 | 275/45R21 | 110Y XL | 2337 | 50 | 9 | 10.7 | 30.7 | 9 | |
| 35 | 315/35R21 | 110Y XL | 2337 | 50 | 11 | 12.2 | 28.9 | 9 | |
| 40 | 275/40R21 | 109Y XL | 2039 | 50 | 9 | 10.9 | 29.8 | 9 | |
| 45 | 245/45R21 | 103Y XL | 1929 | 50 | 8 | 9.4 | 28.9 | 9 | |
| 45 | 265/45R21 | 108Y XL | 2205 | 50 | 9 | 10.4 | 29.5 | 9 | |
| 45 | 275/45R21 | 110W XL | 2337 | 50 | 9 | 10.7 | 30.7 | 9 | |
| 20 | 40 | 245/40R20 | 102V | 1874 | 44 | 7.5 | 10 | 26.9 | 10 |
| 50 | 245/50R20 | 103V XL | 1929 | 50 | 7.5 | 10 | 28.1 | 10 | |
| 50 | 265/50R20 | 111V XL | 2403 | 50 | 8.5 | 10.9 | 30.6 | 10 | |
| 55 | 285/50R20 | 118V XL | 2756 | 50 | 9 | 11.7 | 31.3 | 9 | |
| 55 | 235/55R20 | 102W XL | 2039 | 50 | 7.5 | 9.7 | 30.1 | 10 | |
| 55 | 255/55R20 | 110Y XL | 2337 | 50 | 8.5 | 11.2 | 30.9 | 10 | |
| 60 | 275/60R20 | 115H | 2679 | 44 | 8 | 10.9 | 33 | 13 | |
| 19 | 40 | 225/40R19 | 96W XL | 1565 | 50 | 7.5 | 9 | 26.1 | 9 |
| 50 | 255/50R19 | 107W XL | 2149 | 50 | 8 | 10.1 | 28.1 | 9 | |
| 55 | 235/55R19 | 105V XL | 2039 | 50 | 7.5 | 9.6 | 28.2 | 10 | |
| 55 | 255/55R19 | 111Y XL | 2403 | 50 | 7.5 | 10.2 | 29.1 | 9 | |
| 60 | 255/60R19 | 113W XL | 2535 | 50 | 7.5 | 10.2 | 30.1 | 9 | |
| 18 | 55 | 215/55R18 | 93V XL | 1433 | 50 | 7 | 8.8 | 27.3 | 10 |
| 55 | 225/55R18 | 98V | 1653 | 44 | 7 | 9.1 | 27.8 | 10 | |
| 55 | 235/55R18 | 100V XL | 1874 | 50 | 7.5 | 9.7 | 28.1 | 10 | |
| 55 | 255/55R18 | 109W XL | 2271 | 50 | 8 | 10.4 | 29 | 12 | |
| 60 | 235/60R18 | 107V XL | 2149 | 50 | 7 | 9.5 | 29.1 | 10 | |
| 60 | 245/60R18 | 105V | 2039 | 44 | 7 | 9.8 | 29.6 | 10 | |
| 60 | 265/60R18 | 114V XL | 2601 | 50 | 8 | 10.7 | 30.5 | 11 | |
| 65 | 235/65R18 | 106W | 2094 | 44 | 7 | 9.4 | 30 | 10 | |
| 65 | 255/65R18 | 111H | 2403 | 44 | 8 | 10.2 | 31 | 10 | |
| 17 | 65 | 235/65R17 | 108V XL | 2205 | 50 | 8.5 | 9.4 | 29 | 10 |
| 16 | 65 | 215/65R16 | 98H | 1653 | 44 | 6.5 | 8.7 | 27 | 10 |
